The Jaylor Model 5100 Self Propelled mixer has advanced features that include our patented square-cut auger assembly. Through research and development, the operator positioning on the side has been found to be more ergonomic as well as it increases visibility down the aisle as well as to see the feed unload from the mixer. The unloading door control handle is also within easy reach and does not require hydraulics to operate. The Polyethylene mix chamber assembly that includes a 1/4″ reinforced steel floor places structural strength where it is needed, yet saves weight and offers incredible wear resistance, thus ensuring long life and the ability to carry larger loads.


More Info

Standard Features

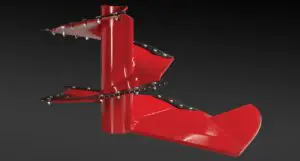

Patented Square cut auger

Patented Square Cut Auger

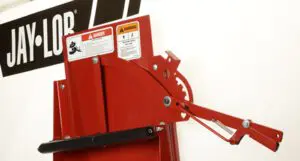

Adjustable Discharge Door

Adjustable Discharge Door

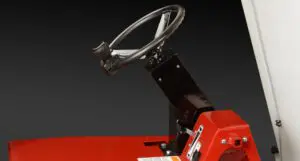

Steering Wheel - Zero Turn Design

Steering Wheel - Zero Turn Design

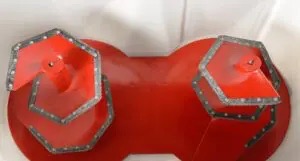

Patented Square Cut Auger - Top

Patented Square Cut Auger - Top

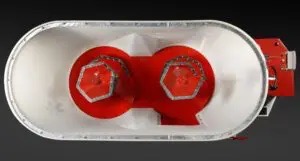

Durable Polyethylene Drum

Durable Polyethylene Drum

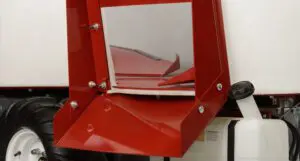

Door Chute

Door Chute

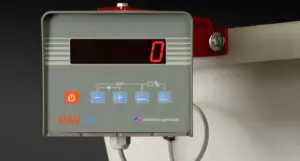

Stad 02 Scale Indicator

Stad 02 Scale Indicator

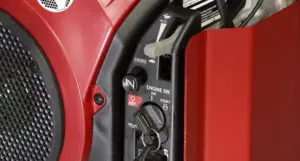

Honda Engine Option 1

Honda Engine Option 1

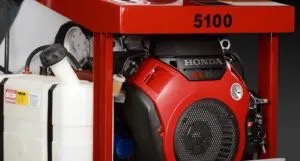

Honda Engine Option 2

Honda Engine Option 2

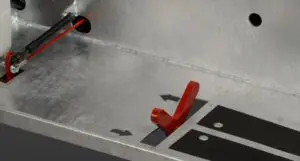

Foot Drive Control

Foot Drive Control

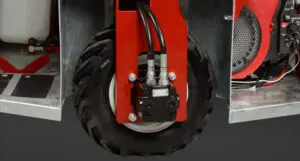

Steering Tire on Self-Propelled Model

Steering Tire on Self-Propelled Model

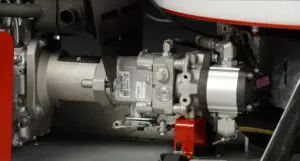

Hydrostatic Pump

Hydrostatic Pump

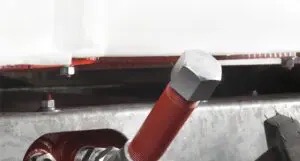

Protected Hydrostat System

Protected Hydrostat System

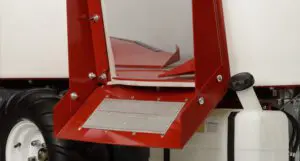

Magnet Chute

Magnet Chute

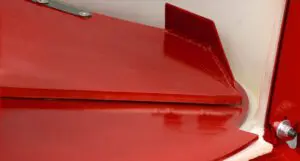

Steel-Reinforced Floor

Steel-Reinforced Floor

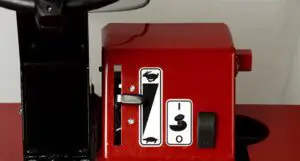

Convenient Auger Control

Convenient Auger Control

Automatic Cooling Fan

Automatic Cooling Fan

Features

  • Dedicated Wheel and Auger Hydrostatic Pumps
  • Control Console with Auger switch and Throttle
  • Twin Square-Cut Auger Optimized for Baleage
  • Pedal Control for Braking, Direction & Speed
  • 4-Point Weigh System with Stad04 Indicator
  • Galvanized Steel Frame and Undercarriage
  • Polyethylene Drum with ¼” Steel Floor
  • 5-Position Adjustable Manual Door
  • Stainless-steel Angling Blades
  • Zero-Degree Turning ability

Capacity No Extension: 591ft³ | 2.58m³

Weight: 2280lbs | 1035kg

Height: 72.5in | 1.85m

Width: 48.5in | 1.23m

Length: 129in | 3.28m

Number Of Knives: 26

Drum Material: Polyethylene

Drum Thickness: 0.43in | 10.9mm

Door Width: 18in | 45.7cm

Door Height: 22in | 55.9cm

Discharge Height: 14.5in | 36.83cm

Frame: Galvanized Steel

Standard Tires: 21X11.00-10 4PR (2)
16X6.50-8 4PR (1)

Standard Drive: 22 HP Honda Gas Engine

Starting System: Electric 12VDC

Scale System: DG STAD 02
