New JAYLOR 5425

JAYLOR
JAYLOR 5425
REQUEST A QUOTE

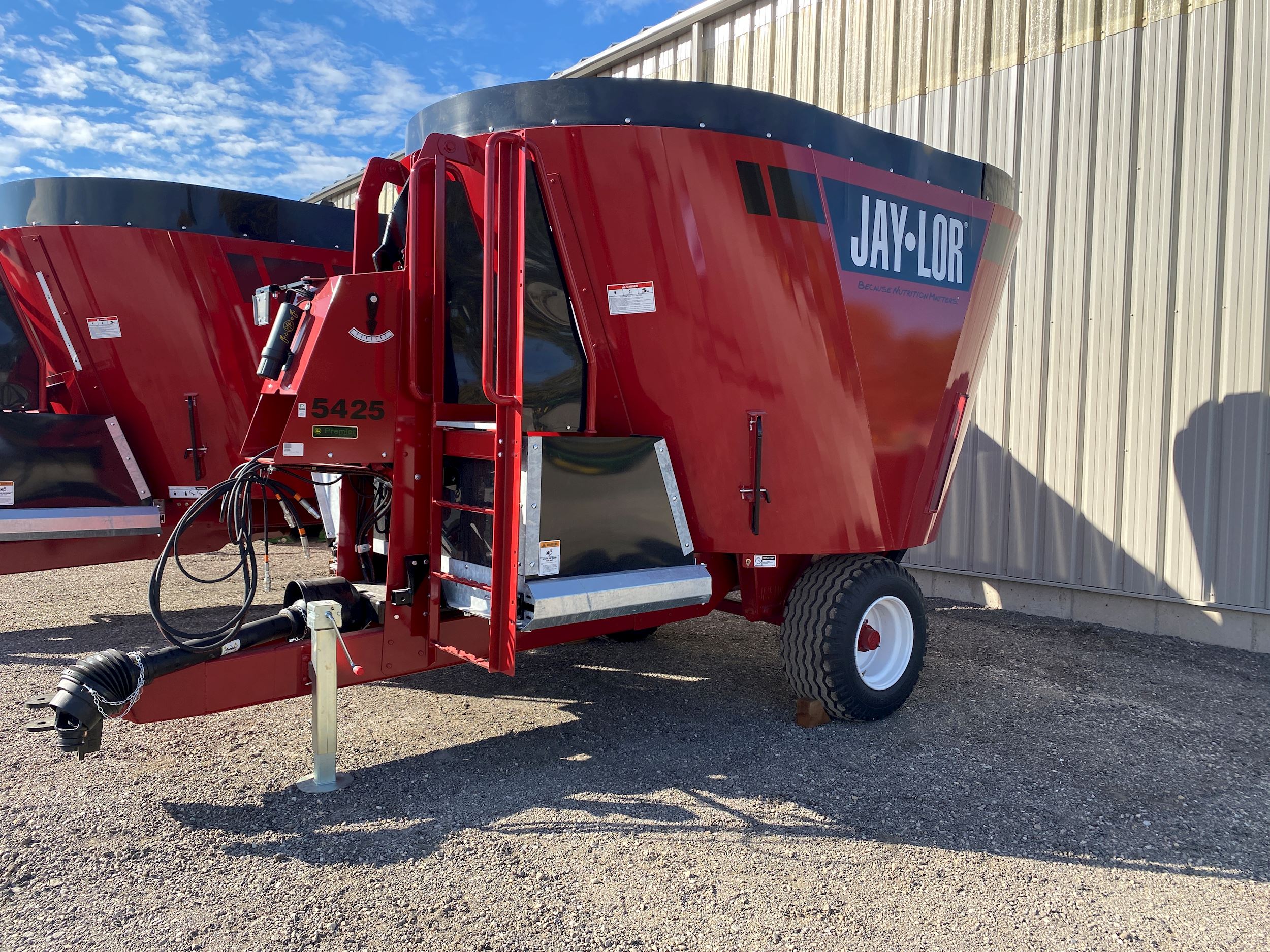

If you’ve ever seen a Jaylor TMR mixer off in the distance there’s a good chance it was a 5425. Dairy, cow-calf, backgrounding, and mid-sized grower operators the world over make this mixer of choice to keep rumens full and productivity up. Engineered with the full range of unique innovations; with features and options to tailor an optimal feeding solution.

More Info

Standard Features:

Square Cut Auger with Sloped Top
Slide Plate Technology
Tungsten Carbide Coated Knives
Welded Mixing Chamber
Shaker Box
Mixer Level
Mix Viewing Window
2 Restrictor Blades
Reinforced Frame
Rapid Discharge Door
3 Point Weigh System
Planetary Gearbox
Easy View Oil Reservoir
Shear Bolt Protection
Ladder and Platform
Galvanized Discharge Conveyor
Heavy Duty Adjustable Cast Hitch
Heavy Duty Hubs
Heavy Duty Single Straight Axle

Optional Features:

  • Angling Blade Auger
  • Alexander Knives
  • Vertical Knives
  • Hay Ring
  • Plastic Extension Upgrade
  • Rear Door
  • Corner Door
  • Center Side Door
  • Drop Floor
  • 3′ Conveyor
  • Door Chute
  • Discharge Conveyor, Left or Right
  • Dual Discharge Flat Conveyor
  • Flip-Up Conveyor
  • Discharge Magnet
  • Rubber Flap
  • Dual Conveyor Boot
  • HD axle with Dual Tires 245/70R19.5
  • Fenders
  • Road Light
  • Battery Mount
  • Safety Chains
  • #8 Constant Velocity PTO
  • 2 Speed Transmission
  • Remote Transmission Shifter
  • STAD 04 PLUS² Indicator Upgrade
  • WIN SCALE² Indicator Upgrade
  • TOP SCALE IC Indicator Upgrade
  • Cab Remote Display
  • Weight Repeater Remote Display
  • Alphanumeric Remote Display
  • Dina-Tel 2 for Full display
  • Wi-Net Modem
  • P2P Major Functions Remote
  • Mixer Control by Office PC
  • Software For Mixer & Feeding Management
  • Motor Controller Automate Mixer Operation

Other Features:

  • Sloped top Square-Cut Auger
  • 3-Point Weigh System with DG500 Indicator
  • Rapid Discharge Door with Self-Cleaning Tracks
  • Galvanized Conveyor for Longevity
  • Structurally Reinforced Frame
  • Mix Viewing Window
  • Included Shaker Box and Scale
  • Mixer Level Indicator
  • Heavy Duty Adjustable Cast Hitch

Capacity No Extension: 450ft³ | 12.7m³

Capacity 8" Extension: 485ft³ | 13.7m³

Capacity 12" Extension: 515ft³ | 14.6m³

Capacity 16" Extension: 540ft³ | 15.3m³

Weight: 7500lbs | 3400kg

Height: 108in | 274cm

Length: 212in | 538cm

Drum Width: 97in | 246cm

Pto Speed: 540 RPM

Minimum Hp: 70 HP

Auger Speed: 41 RPM

Number Of Knives: 9

Auger Flighting Thickness: 5/8in | 16mm

Max Discharge Height: 60in | 152cm*

Conveyor Width: 36in | 91cm

Door Opening Width: 42in | 107cm

Floor Thickness: 5/8in | 16mm

Drum Wall Thickness: 1/4in | 6mm

Standard Tires: 15.0/55-17 26 PLY (2)

Wheel Assembly: Single Straight Axle

* with optional 72" conveyor
