Engine & Drivetrain
Maximum Efficiency

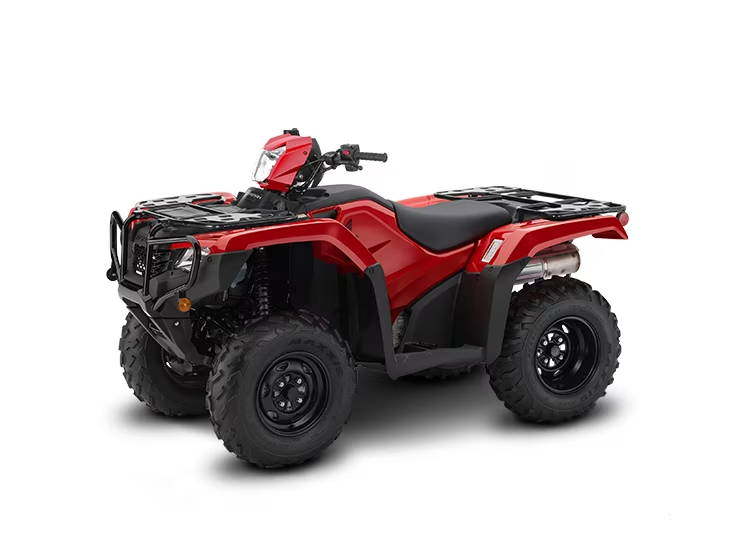

Feel the Foreman 520’s horsepower with its powerful liquid-cooled 518 cc four-stroke engine is longitudinally mounted, allowing direct driveshaft alignment to both front and rear wheels for maximum drivetrain efficiency.
Compact Engine
Overhead-valve design provides compact engine dimensions for improved ground clearance while maintaining a broad, easy-to-use powerband.
Reduced Vibration
Rubber-cushion engine mounting and gear-driven counter-balancer reduce vibration.
Back-up Recoil Starter
Convenient electric starting, with an automatic internal-decompression system, gets you going quickly and easily. Also equipped with a recoil starter as back-up. Powerful alternator has generous capacity with 481 watts of output.
Fuel Efficient
Programmed Fuel Injection (PGM-FI) system improves power delivery and throttle response, and increases fuel efficiency for extended range.
Excellent Drivability
Super-heavy-duty automatic clutch with low-rpm engagement for excellent drivability and towing capacity. Rugged five-speed transmission with ultra-low first gear features manual foot shifting with automatic clutch.
Tackle any Terrain
2WD/4WD system offers three drive modes: 2WD; 4WD with torque-sensing front differential; and 4WD with locked front differential to optimize traction. The system also features a Speed Override mode that can be engaged when the front differential is locked, which allows increased wheel speed under severe conditions, such as deep mud.
Quiet Operation
Stainless-steel exhaust system includes a USDA-qualified spark arrester/muffler designed for quiet operation without servicing for long-lasting performance.
Chassis & Suspension
Lightweight Strength
Durable double-cradle steel frame developed with Computer Aided Engineering is both rigid and lightweight for precise handling and a smoother ride.
Great Control
Front and rear suspension both offer 185 mm (7.3 in.) of travel for a plush and controlled ride. Adjustable spring preload on all shocks allows suspension to be tuned to match varying loads and riding conditions.
Impressive Handling
Enclosed-axle swingarm offers optimized stiffness for improved toughness and excellent handling performance. Rubber swingarm pivot bushings provide excellent low-speed ride comfort and increased durability.
Engineered Tough
Plastic CV joint boots are durable and tear-resistant. Sealed steering-knuckle bearings improve steering performance and durability.
Impressive Handling
Enclosed-axle swingarm offers optimized stiffness for improved toughness and excellent handling performance. Rubber swingarm pivot bushings provide excellent low-speed ride comfort and increased durability.
Engineered Tough
Plastic CV joint boots are durable and tear-resistant. Sealed steering-knuckle bearings improve steering performance and durability.
Optimal Ground Clearance
Generous ground clearance of 190 mm (7.5 in.) allows you to ride over rugged terrain with ease.
Stopping Power
Rear drum brake is located inside the right rear wheel for improved durability and increased ground clearance. Dual front hydraulic disc brakes with large 190 mm rotors provide strong and consistent stopping power.
Additional Features
Pro-ConnectTM Rack System. Excellent Load and Towing Capacity
Pro-Connect Rack System for accessories. Mount accessories directly and quickly to the rear or front rack of your Foreman using easy Pro-Connect Rack System (no tools required). Our purpose-built line of Pro-Connect accessories helps to keep your gear in place and more secure wherever you place your items on the rack while maximizing storage. Front and rear steel-tube carriers feature large steel plates and additional tie-down points for improved load security. Load capacity for the large front and rear carriers is 40 kg (88 lb.) and 80 kg (176 lb.) respectively. The heavy-duty trailer hitch has a 385 kg (850 lb.) towing capacity.
Protective Bodywork
Durable bodywork provides excellent mud and debris protection. Full-length synthetic lower skidplate with integrated front brush guard protects against damage from rocks, sticks and other obstacles. One-piece tank/side cover allows easy access for maintenance with no tools required.
Strong Visibility
Twin-headlight system features 35-watt headlights with focused light distribution for improved visibility after dark. The headlight dimmer switch makes it easy to change between high and low beams to activate the top assist 50-watt light for more illumination when you need it or allowing it to be turned off while carrying a load on the front carrier.
Intuitive Display
Full-function instrumentation gives the dash a modern look while providing information at a glance. There’s even a Maintenance Minder system that notifies when it’s time for service.
Superior Comfort
Seat padding is both thick and soft for excellent comfort.
